In fixed headstock turning, knowing how to manage and minimize vibration generation is essential to ensure maximum machining precision and quality.
Vibrations, originating from the dynamic interaction between spindle, tool, and workpiece, can compromise the surface finish, reduce tool life, damage the spindle, and negatively impact production efficiency.
To keep vibrations under control on fixed headstock lathes, especially with long and large-diameter bars, it is essential to take care of every detail of the machine ecosystem, starting with the peripherals.
In particular, it is necessary to carefully evaluate the characteristics of the bar feeder chosen to accompany the lathe. It is not enough to consider only the bar guiding system: the installation distance from the spindle and the structure of the feeder itself also directly influence the ability to contain vibrations and ensure top-quality machining.
1. The bar guiding system

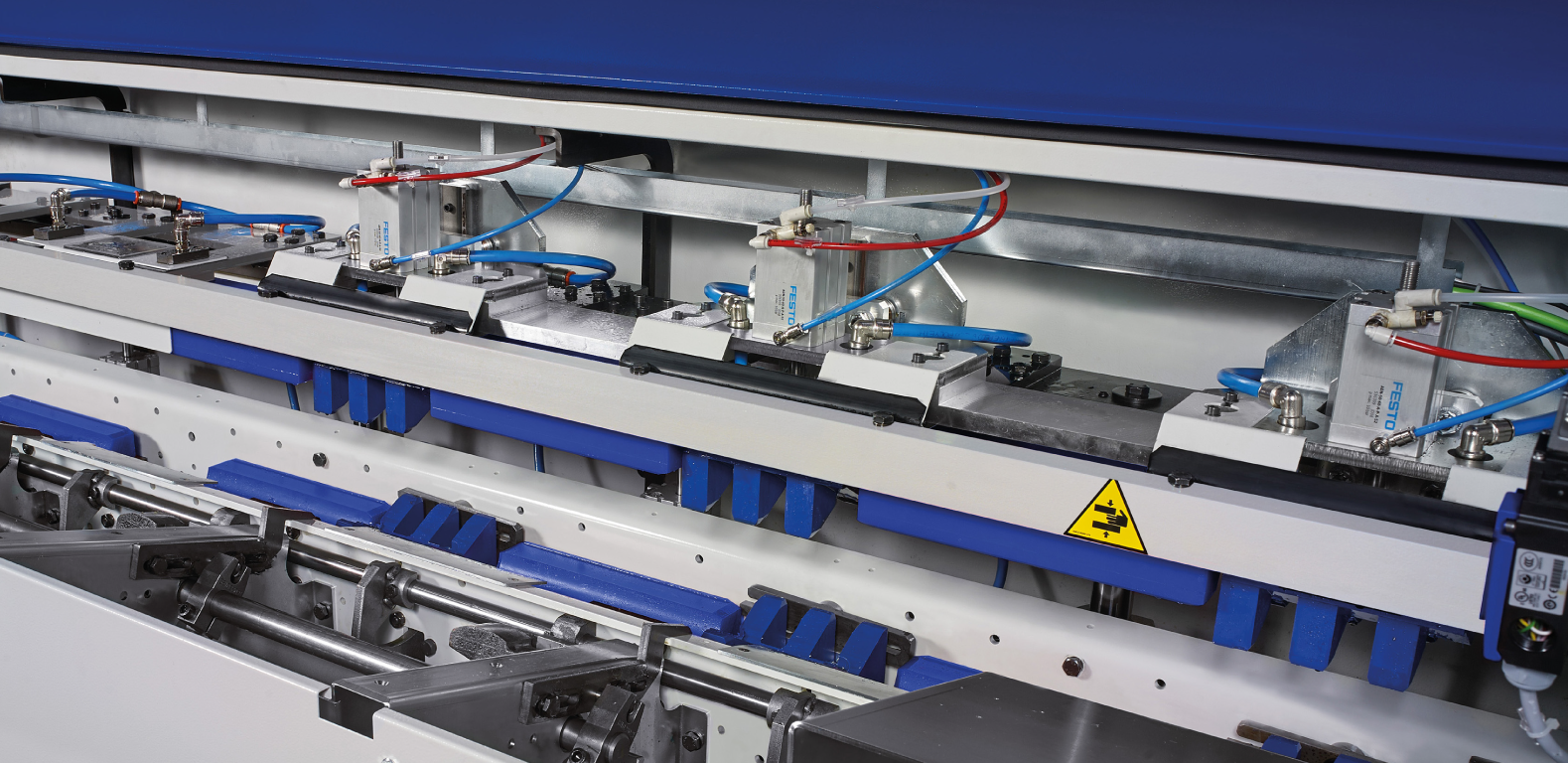

The bar feeder’s guiding system is a key element to ensure stability and precision on fixed headstock lathes.
An effective guiding system adapts to the diameter of the bar being machined, accompanying it smoothly and continuously to minimize oscillations and misalignments.
It does not only contain the bar, but also actively absorbs the vibrations generated during machining. An optimal guiding system includes the use of high-damping materials, the presence of an adjustable channel based on the diameter of the bar and pusher, and the introduction of intermediate guiding points between feeder and lathe.
When evaluating a bar feeder for a fixed headstock lathe, make sure it includes a modern guiding system, designed for smooth feeding, precision, and the ability to manage vibrations throughout the machining cycle.
Learn more about the role of the guiding system in reducing vibrations on fixed headstock lathes →

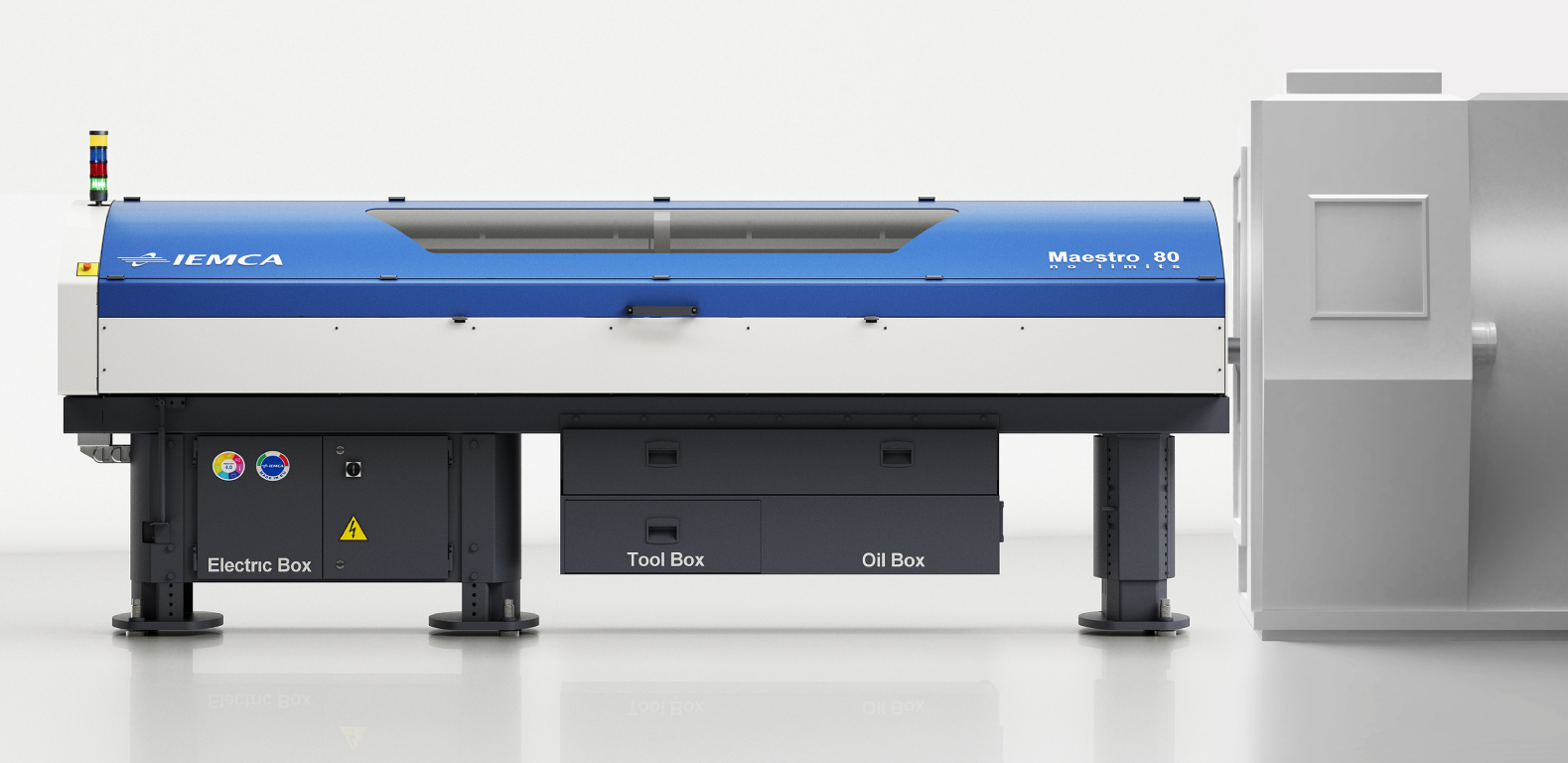

2. The installation distance between bar feeder and lathe
The position of the bar feeder relative to the lathe has a direct impact on vibration control in fixed headstock applications. If the distance is excessive, the free length of the bar increases, making it more prone to bending, oscillation, and vibration.
To achieve maximum stability and precision, it is essential that the bar feeder is positioned at the correct distance from the machine tool. A well-calibrated installation helps minimize vibrations, even in the most demanding operations.
Ensure that the installation layout is carefully planned, and that the bar feeder is properly positioned relative to the lathe.
Find out more about the importance of proper installation distance between feeder and lathe →
3. The structure of the bar feeder
When working with fixed headstock lathes, the structural rigidity of the bar feeder is crucial to control the generation and transmission of vibrations.
The bar feeder structure must ensure controlled dynamic behavior, robustness, and stability, to protect machining precision, efficiency, and long-term reliability.
A robust structure includes elements such as a reinforced central body, a solid base, and stable floor anchoring.
Carefully evaluate the feeder’s structure at the selection stage to ensure robustness, stability, and rigidity.
Discover how the feeder’s structure affects machining quality →
How to choose a bar feeder to reduce vibrations on fixed headstock lathes
Minimizing vibrations in fixed headstock lathes requires an optimized configuration of the entire application. In particular, when evaluating the bar feeder to accompany the lathe, it is essential to consider these 3 key aspects:
- The bar guiding system, which must be flexible, damped, and designed to best guide the bar at every stage of the cycle.
- The installation distance from the lathe, which must be precisely calibrated to limit oscillations and bending between feeder and spindle.
- The structure of the bar feeder, which must ensure robustness, stability, and effective vibration damping.
Investing in a bar feeder designed with attention to these elements means minimizing the impact of vibrations in fixed headstock machining, ensuring precision and quality, and protecting the durability and efficiency of the entire installation.
Are you looking for a bar feeder for a fixed headstock lathe?

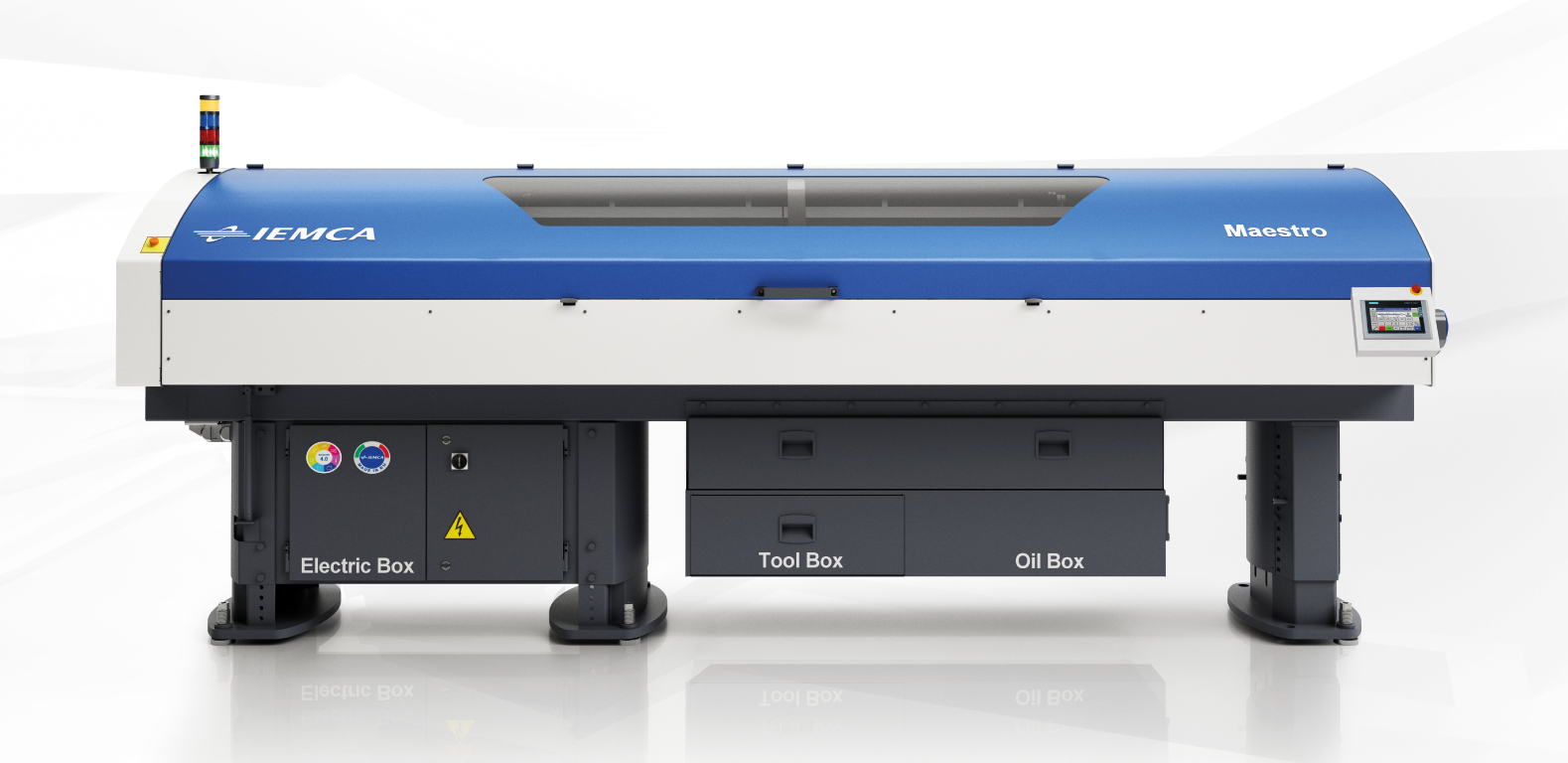

The bar feeders of the IEMCA MAESTRO range offer:
- ABACOS patented system: self-adjusting bushings in damping material that adapt to the diameter of the bar and bar pusher.
- Reduced installation distance: thanks to the use of short bar pushers, the bar feeder can be positioned closer to the lathe than traditional solutions allow.
- Heavy Duty structure: extra-rigid central beam and reinforced lower frame for maximum robustness and stability.
Explore the technical sheet or contact us now for a personalized consultation.
